Model Whirlpool 1456^1A GAS RANGE – Common Parts & Diagrams
07 - WIRE HARNESS , BACKSPLASH , GRID

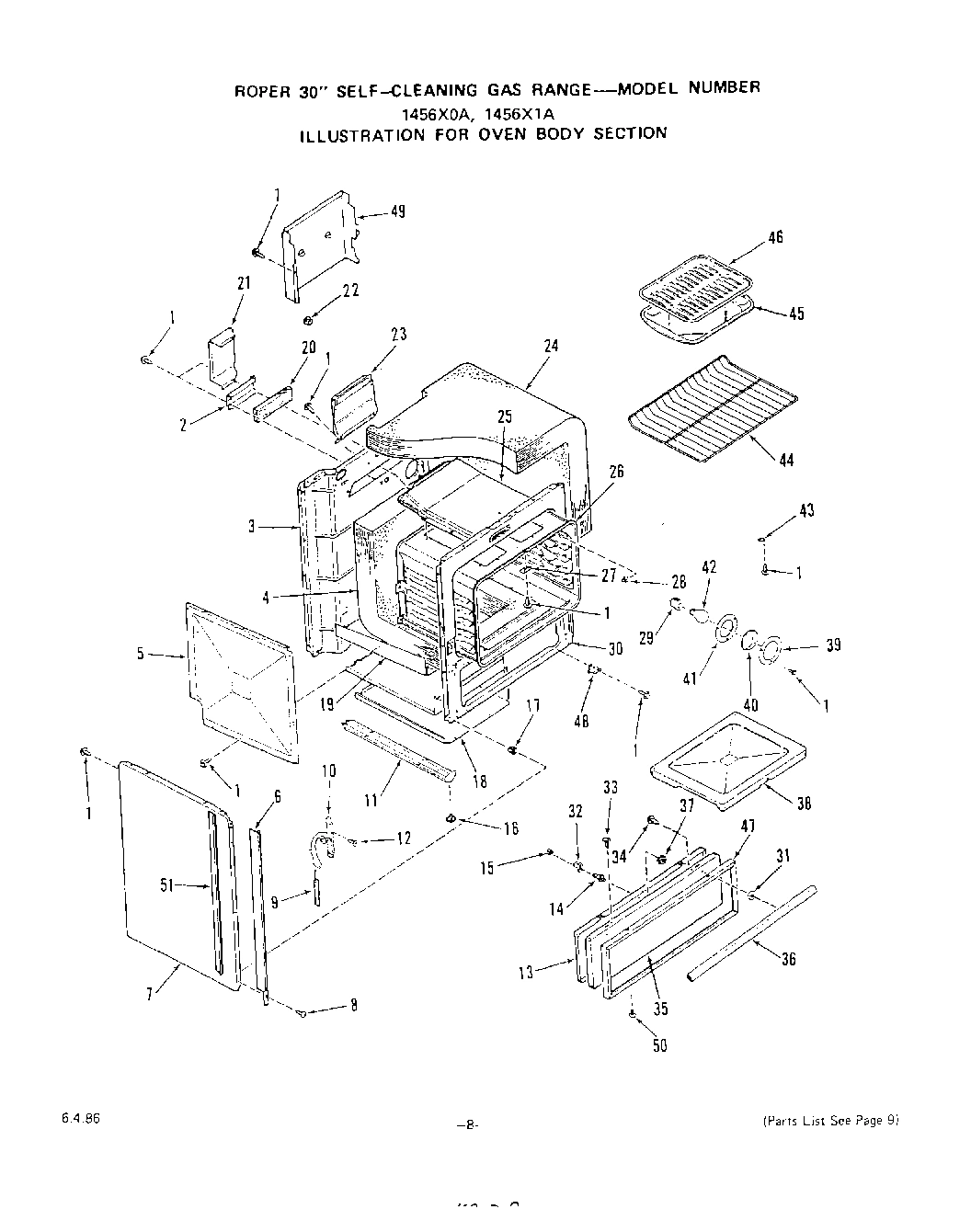

05 - OVEN BODY

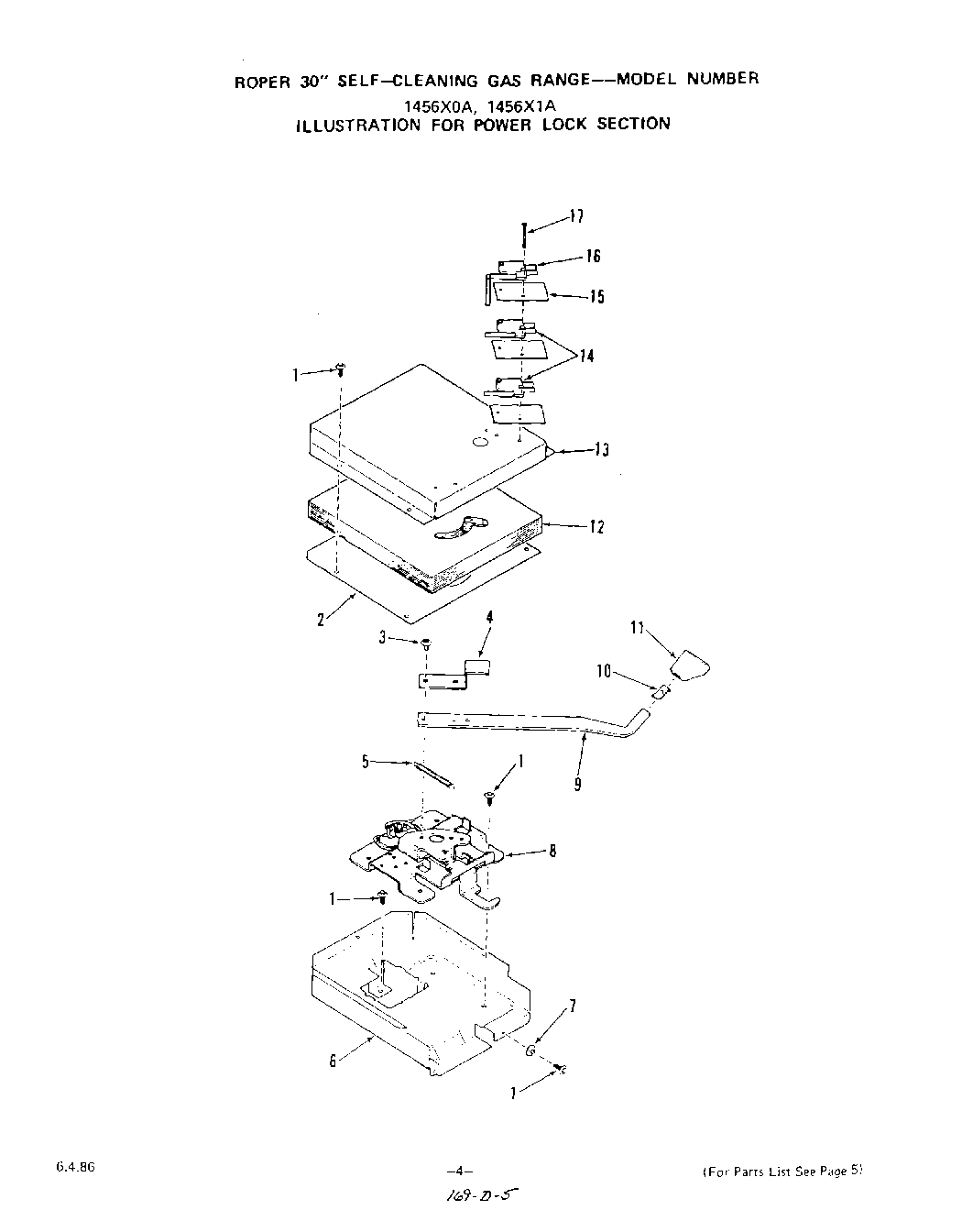

03 - POWER LOCK
04 - BROILER AND OVEN BURNER

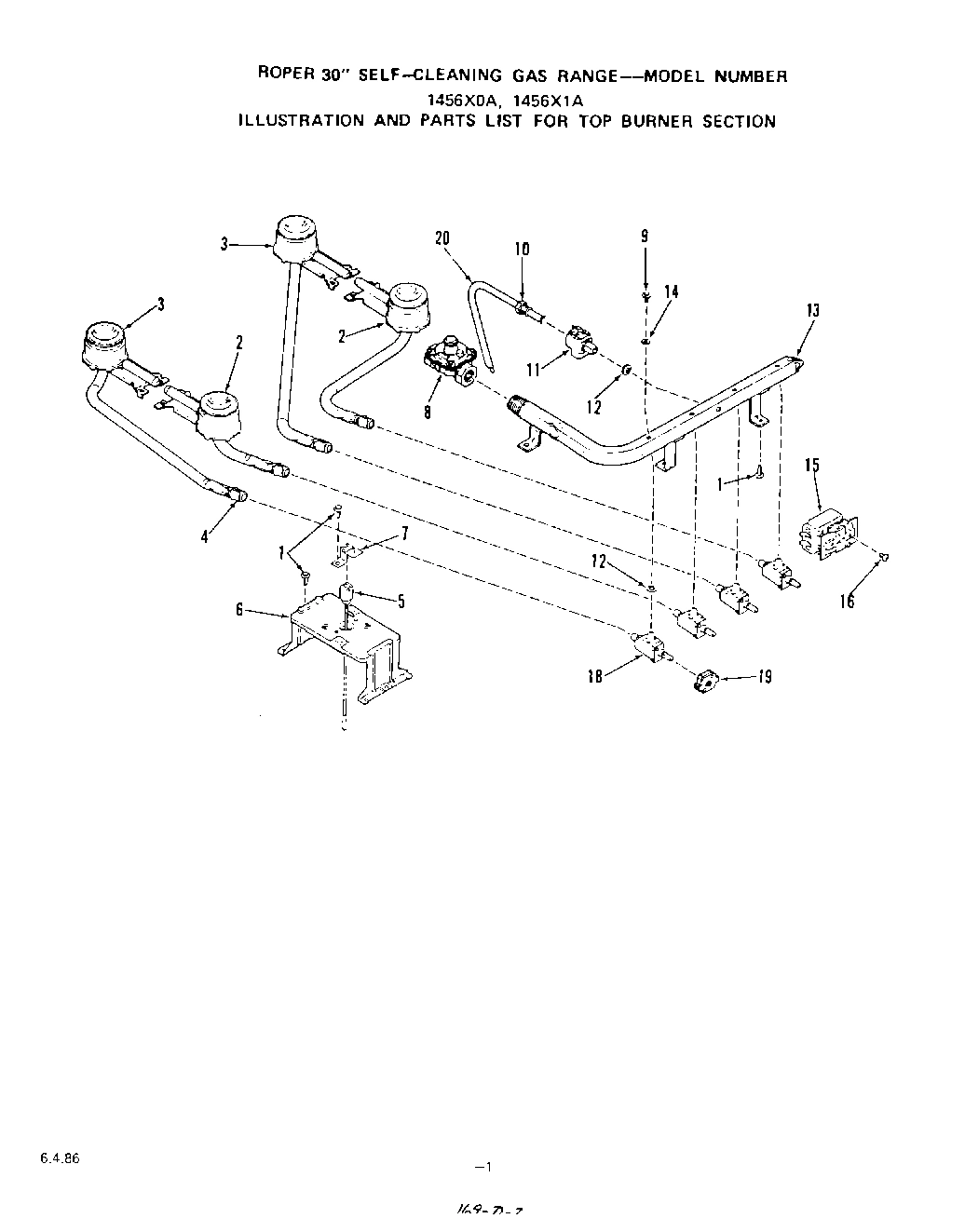

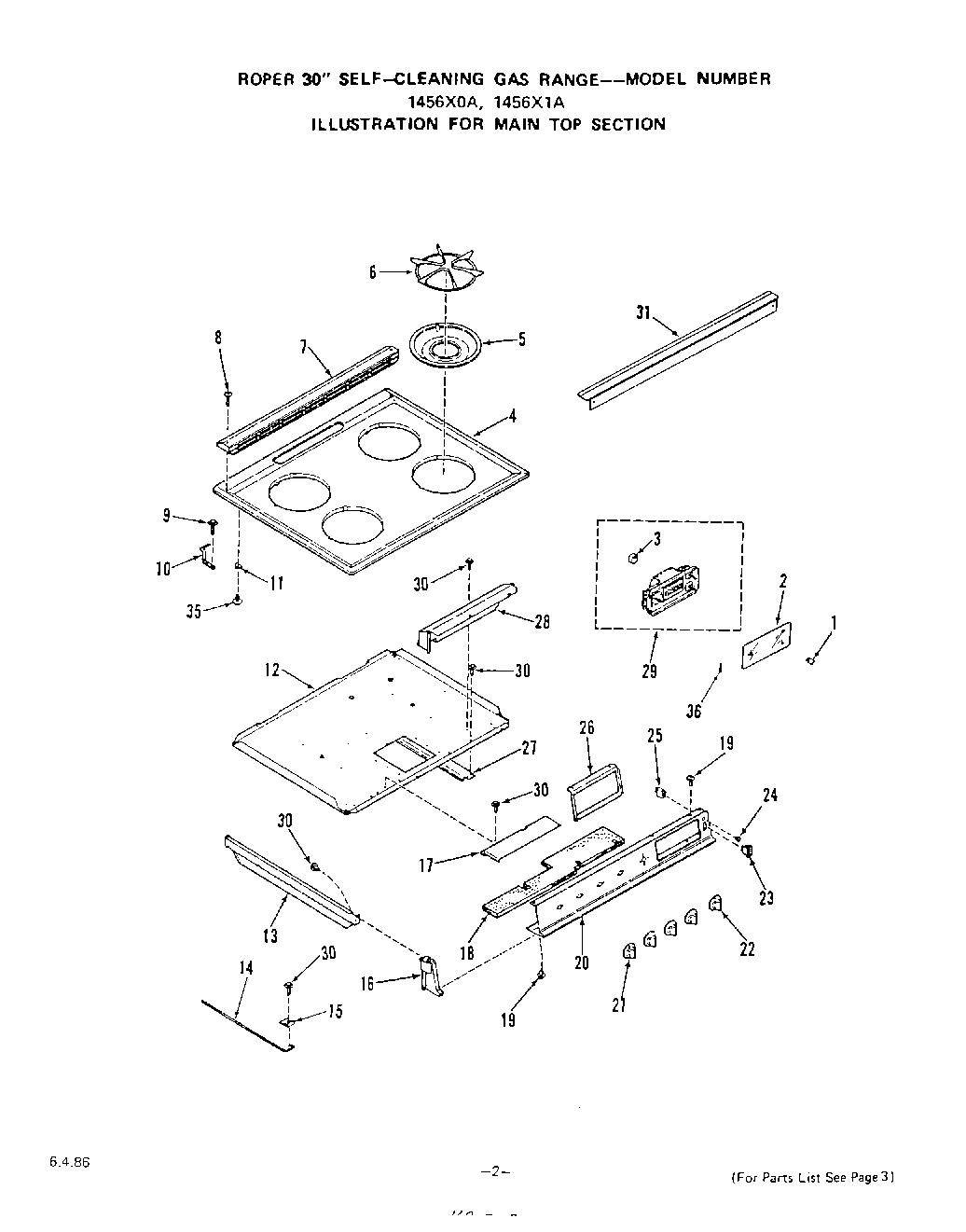

01 - TOP BURNER
02 - TOP BURNER
06 - OVEN DOOR

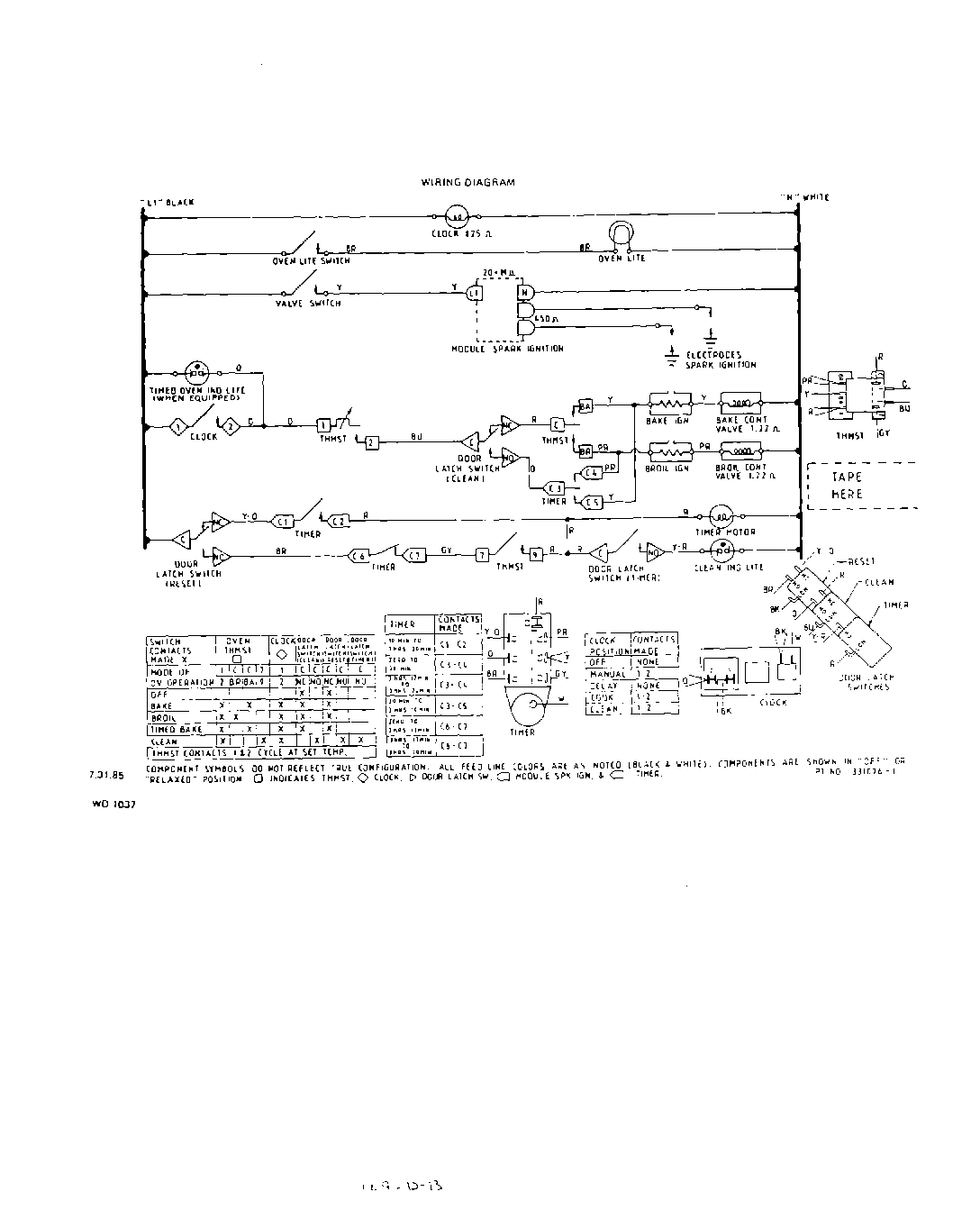

09 - SECTION
Common parts from model Whirlpool 1456^1A GAS RANGE
1
Seal-Inner Glass WPL 302935 Contact Us For Availability
1
Wire Connector WPL 103595 Contact Us For Availability
1
Knob-Clock (Start & Stop Time) WPL 109225 Contact Us For Availability
1
Knob-Clock (Minute Minder) WPL 294810 Contact Us For Availability
2
Inner Glass-Oven Door WPL 312426 Contact Us For Availability
2
Igniter-Broiler & Oven Burner WPL 319887 Contact Us For Availability
2
Glass-Clock WPL 330403 Contact Us For Availability
2
Support-Insulation WPL 331120 Contact Us For Availability
2
Burner-Top Front (Inc`s.4) (Left) WPL 330350 Contact Us For Availability
2
Burner-Top Front (Inc`s.4) (Right) WPL 330351 Contact Us For Availability
2
Wire Shield WPL 327809 Contact Us For Availability
3
Lining-Oven Door WPL 331624 Contact Us For Availability
3
Bracket-Broiler Burner Igniter WPL 327804 Contact Us For Availability
3
Motor-Clock WPL 327309 Contact Us For Availability
3
Screw 10-32x5/16`` WPL 78570 Contact Us For Availability
3
Burner-Top Rear (Inc`s. 4) (Left) WPL 330488 Contact Us For Availability
3
Burner-Top Rear (Inc`s. 4) (Right) WPL 330489 Contact Us For Availability
3
Main Back WPL 330613 Contact Us For Availability
4
Baffle-Broiler Burner WPL 327807 Contact Us For Availability
4
Main Top (1456X0A Models) WPL 330378 Contact Us For Availability
4
Main Top (1456X1A Models) WPL 334858 Contact Us For Availability
4
Extension-Handle WPL 330737 Contact Us For Availability
4
Air Shutter (4 Req) WPL 327198 Contact Us For Availability
4
Insulation-Oven Back & Bottom (1 Piece) WPL 329146 Contact Us For Availability
5
Retainer-Door Glass WPL 326009 Contact Us For Availability
5
Aeration Pan (4 Req) WPL 330427 Contact Us For Availability
5
Spring WPL 313075 Contact Us For Availability
5
Electrode-Spark Igniter (Right) WPL 329462 Contact Us For Availability
5
Electrode-Spark Igniter (Left) WPL 329464 Contact Us For Availability
5
Retainer-Insulation (Lt. or Rt.) WPL 328959 Contact Us For Availability
6
Intermediate Glass-Oven Door WPL 326088 Contact Us For Availability
6
Broiler Burner (Inc`s. Keys 7, 8, 9, 15) WPL 330163 Contact Us For Availability
6
Top Grate (4 Req) WPL 316786 Contact Us For Availability
6
Lock Box WPL 328489 Contact Us For Availability
6
Support-Top Burner (Rt. or Lt.) WPL 330358 Contact Us For Availability
6
Trim-Side (Left) WPL 330340 Contact Us For Availability
6
Trim-Side (Right) WPL 330341 Contact Us For Availability
7
Baffle WPL 328660 Contact Us For Availability
7
Cover-Vent WPL 330738 Contact Us For Availability
7
Washer WPL 21067 Contact Us For Availability
7
Bracket-Spark Igniter (Lt. or Rt.) WPL 312453 Contact Us For Availability
7
Body Side (Lt. or Rt.) (Black) WPL 326102 Contact Us For Availability
8
outer glass-oven door WPL 326367 Contact Us For Availability
8
Adjustment Screw -Air Shutter WPL 312989 Contact Us For Availability
8
Screw 6-32 WPL 332285 Contact Us For Availability
8
Latch Assm. (Inc`s. Key 7) WPL 328656 Contact Us For Availability
8
Pressure Regulator WPL 324528 Contact Us For Availability
8
Screw 10AB WPL 326974 Contact Us For Availability
9
Screw 8-32 x 1/2`` WPL 319447 Contact Us For Availability
9
Air Shutter WPL 312988 Contact Us For Availability
9
Handle-Latch WPL 333710 Contact Us For Availability
9
Mounting Screw 1/4-20 WPL 311455 Contact Us For Availability
9
Spring-Oven Door (Lt. or Rt.) WPL 326965 Contact Us For Availability
10
Frame-Oven Door WPL 326001 Contact Us For Availability
10
G.M. Inverted Nut 3/8`` WPL 142433 Contact Us For Availability
10
Hinge-Main Top (Right 1456X0A Models) WPL 331513 Contact Us For Availability
10
Hinge-Main Top (Left 1456X0A Models) WPL 331514 Contact Us For Availability
10
Hinge-Main Top (Right 1456X1A Models) WPL 334843 Contact Us For Availability
10
Hinge-Main Top (Left 1456X1A Models) WPL 334844 Contact Us For Availability
10
Clip-Knob WPL 328474 Contact Us For Availability
10
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
10
Hinge-Oven Door (Right) WPL 326012 Contact Us For Availability
10
Hinge-Oven Door (Left) WPL 326013 Contact Us For Availability
11
Cushion (3 Req) WPL 112370 Contact Us For Availability
11
Bracket-Hinge WPL 335161 Contact Us For Availability
11
Knob-Lock WPL 328475 Contact Us For Availability
11
Shut Off Valve WPL 326830 Contact Us For Availability
11
Base w/Levelers (Lt. or Rt.) WPL 326050 Contact Us For Availability
12
Handle WPL 303342 Contact Us For Availability
12
Tubing 3/8`` (Control Valve to Broiler Orific WPL 286823 Contact Us For Availability
12
Burner Box Bottom WPL 330368 Contact Us For Availability
12
Insulation-Latch WPL 331031 Contact Us For Availability
12
Rubber Gasket WPL 313563 Contact Us For Availability
12
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
13
Broiler Orifice Fitting WPL 315437 Contact Us For Availability
13
Extension-Burner Box Side (1456X0A Models) WPL 330343 Contact Us For Availability
13
Extension-Burner Box Side (1456X1A Models) WPL 334877 Contact Us For Availability
13
Cover-Lock Box WPL 330732 Contact Us For Availability
13
Manifold Pipe WPL 330348 Contact Us For Availability
13
Lining-Storage Door WPL 330668 Contact Us For Availability
14
Baffle-Oven Door WPL 328719 Contact Us For Availability
14
Timer WPL 328350 Contact Us For Availability
14
Rod-Main Top WPL 326066 Contact Us For Availability
14
Switch-Micro WPL 331471 Contact Us For Availability
14
Rubber Gasket WPL 311692 Contact Us For Availability
14
Strike WPL 299784 Contact Us For Availability
15
Mounting Plate-Glass WPL 328615 Contact Us For Availability
15
Screw 8 - 32x3/8`` WPL 97217 Contact Us For Availability
15
Clamp WPL 326348 Contact Us For Availability
15
Insulator-Switch (3 Req) WPL 329171 Contact Us For Availability
15
Thermostat-Oven WPL 328279 Contact Us For Availability
15
Catch-Strike WPL 71003 Contact Us For Availability
16
Center Glass-Oven Door WPL 326632 Contact Us For Availability
16
Screw 8-32x3/16`` WPL 78565 Contact Us For Availability
16
End Cap-Manifold Panel (Left) WPL 330344 Contact Us For Availability
16
End Cap-Manifold Panel (Right) WPL 330345 Contact Us For Availability
16
Switch-Micro WPL 331080 Contact Us For Availability
16
Leg Leveler (4 Req) WPL 326052 Contact Us For Availability
17
Retainer-Oven Door Insulation WPL 328623 Contact Us For Availability
17
Cover-Insulation WPL 331123 Contact Us For Availability
17
Screw 4-40 x1 9/16`` WPL 331081 Contact Us For Availability
18
Insulation-Oven Door WPL 326000 Contact Us For Availability
18
Screw 6-32x3/8`` WPL 329382 Contact Us For Availability
18
Insulation WPL 331092 Contact Us For Availability
18
Gas Valve (4 Req) WPL 333508 Contact Us For Availability
18
Storage Compartment WPL 328491 Contact Us For Availability
19
Gasket-Oven Door WPL 292244 Contact Us For Availability
19
Shield WPL 329903 Contact Us For Availability
19
Switch-Gas Valve (4 Req) WPL 310253 Contact Us For Availability
19
Lower Insulation Retainer WPL 331144 Contact Us For Availability
20
Plug-Oven Door Lining WPL 331557 Contact Us For Availability
20
Baffle-Oven Burner WPL 328480 Contact Us For Availability
20
Tubing 3/8`` (Shut-Off Valve to Control Valve WPL 331107 Contact Us For Availability
20
Manifold Panel WPL 331382 Contact Us For Availability
20
Insulation WPL 330166 Contact Us For Availability
21
Shield-Orifice Fitting WPL 331864 Contact Us For Availability
21
Knob-Gas Valve (4 Req) WPL 327485 Contact Us For Availability
21
Wire Shield WPL 327808 Contact Us For Availability
22
Range Service Cord WPL 332479 Contact Us For Availability
22
Knob-Thermostat WPL 328806 Contact Us For Availability
22
Bushing WPL 324257 Contact Us For Availability
23
G.M. Screw 8-32x3/16`` WPL 155021 Contact Us For Availability
23
Switch-Oven Light (1456X0A Models) WPL 334564 Contact Us For Availability
23
Switch-Oven Light (1456X1A Models) WPL 334649 Contact Us For Availability
23
Flue Deflector WPL 330978 Contact Us For Availability
24
Module-Spark Igniter WPL 320990 Contact Us For Availability
24
Lens-Indicator Light WPL 331705 Contact Us For Availability
24
Insulation-Oven Top & Sides (1 Piece) WPL 329147 Contact Us For Availability
25
Mounting Bracket-Components WPL 329442 Contact Us For Availability
25
Light-Indicator WPL 331716 Contact Us For Availability
25
Flue Box WPL 327781 Contact Us For Availability
26
Disconnect WPL 232150 Contact Us For Availability
26
Bracket-Clock WPL 330337 Contact Us For Availability
26
Oven Body WPL 331568 Contact Us For Availability
27
Clip WPL 106767 Contact Us For Availability
27
Stiffener-Burner Box Bottom WPL 330558 Contact Us For Availability
27
Cover WPL 304835 Contact Us For Availability
28
Valve Cover WPL 328481 Contact Us For Availability
28
Cover-Wire WPL 330356 Contact Us For Availability
28
Clip-Thermostat Bulb (2 Rew) WPL 321539 Contact Us For Availability
29
Oven Burner WPL 333746 Contact Us For Availability
29
Clock WPL 330401 Contact Us For Availability
29
Holder-Oven Light Bulb WPL 87883 Contact Us For Availability
30
Bracket-Igniter WPL 311689 Contact Us For Availability
30
Front Frame WPL 332680 Contact Us For Availability
31
Bottom-Oven Burner Box WPL 327775 Contact Us For Availability
31
Filler-Main Top Rear WPL 331228 Contact Us For Availability
31
spacer-handle WPL 302343 Contact Us For Availability
32
Insulation Retainer-Oven Orifice WPL 329279 Contact Us For Availability
32
Bracket-Catch WPL 328429 Contact Us For Availability
33
Screw-10-32x1/2`` WPL 316849 Contact Us For Availability
33
Plate-Orifice Fitting WPL 328473 Contact Us For Availability
34
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
34
Latch-Oven Burner Box Bottom WPL 328479 Contact Us For Availability
35
Shoulder Screw WPL 328584 Contact Us For Availability
35
Screw 10-32x5/16`` 1456X1A Models WPL 286628 Contact Us For Availability
35
Front Panel-Storage Door WPL 326292 Contact Us For Availability
36
Tubing 3/8`` w/Orifice Fitting (Control Valve WPL 331994 Contact Us For Availability
36
Clip-Clock Bezel 1456X1A Models WPL 335073 Contact Us For Availability
36
Handle-Storage Door WPL 292240 Contact Us For Availability
37
Keps Nut 8-32 WPL 239764 Contact Us For Availability
37
Control Valve WPL 306267 Contact Us For Availability
38
Oven Bottom WPL 331563 Contact Us For Availability
39
Shield-Component Wire WPL 331143 Contact Us For Availability
39
Retainer-Oven Light Lens WPL 229372 Contact Us For Availability
40
Lens-Oven Light WPL 114989 Contact Us For Availability
41
Gasket-Lens WPL 229371 Contact Us For Availability
42
Oven Light Bulb WPL 111257 Contact Us For Availability
43
Cover Plate-Thermostat Bulb WPL 237762 Contact Us For Availability
44
Oven Rack (2 Req) WPL 326069 Contact Us For Availability
45
Broiler Pan WPL 331592 Contact Us For Availability
46
Broiler Pan Grid WPL 326297 Contact Us For Availability
47
Frame-Front Panel WPL 330120 Contact Us For Availability
48
Hinge WPL 107969 Contact Us For Availability
49
Shield-Flue Deflector WPL 330338 Contact Us For Availability
50
Screw 6-20x3/8`` WPL 327621 Contact Us For Availability
51
Extension Side Trim WPL 331512 Contact Us For Availability
× ![]()
